Thông tin chi tiết sản phẩm:
|
| Hệ thống ống xả: | Quạt hút mạnh (lưu lượng: 39–85 m³/phút) | Nguyên vật liệu: | Inox 304 (đầu đốt, tủ) hoặc thép A3 mạ chống ăn mòn |
|---|---|---|---|
| Phạm vi nhiệt độ bức xạ nhiệt: | 400–600°C; Độ chính xác: ±0,5°C; Sai số: ±5°C | Hệ thống đánh lửa: | Đánh lửa điện tử điện áp cao |
| Kích thước buồng đốt: | L1420 × W1200 × H2300mm | Phạm vi ứng dụng: | Máy thử này phù hợp với vật liệu rắn và nhựa xốp có mật độ biểu kiến là 250 kg/m³ hoặc cao hơn. Nó |

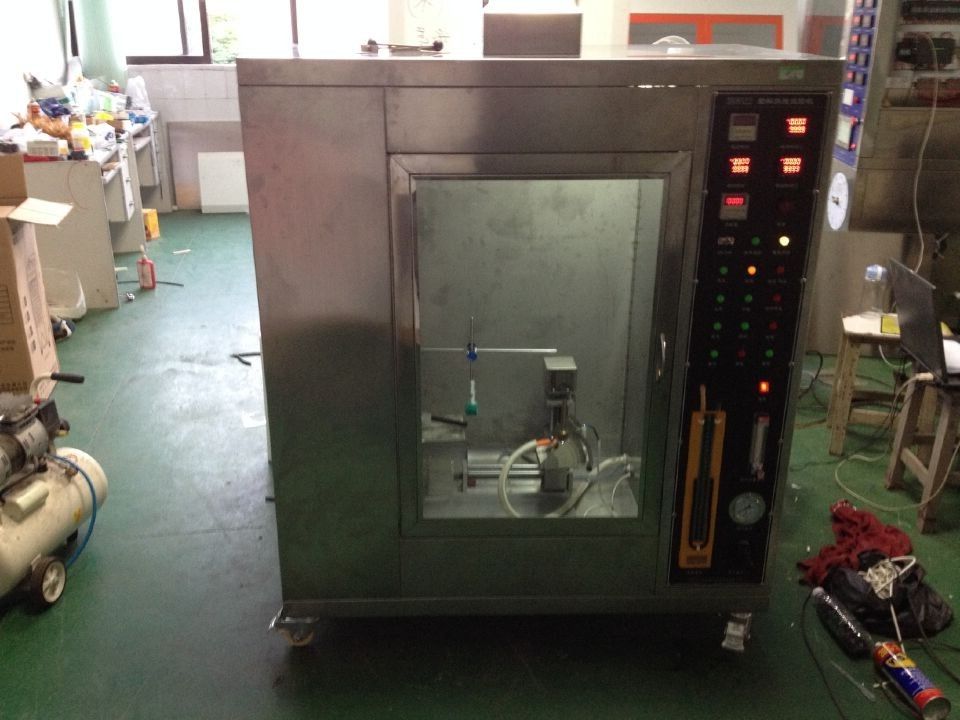

DX-8522 (500W) 5VA/5VB Plastic Burning Tester
The DX-8522 is a professional flammability testing instrument designed for solid materials and foamed plastics with an apparent density of ≥250 kg/m³. It evaluates both flammability and penetration resistance using the 500W flame test method, fully complying with international standards including GB/T 5169.17 (5VA/5VB), IEC 60695-11-20, UL94 5VA/5VB, ASTM D 5048, and ISO 10351.
The tester uses two specimen shapes: long rectangular bars for assessing burning characteristics, and square plates for penetration resistance. It features a 500W burner with adjustable flame dimensions (125mm outer, 40mm inner), a 0.75m³ enclosed black test chamber, a 20° combustion angle, and a 0-99.9s adjustable timer, ensuring accurate and repeatable test results.
Application Scope
This tester is suitable for solid materials and foamed plastics with an apparent density of 250 kg/m³ or higher. It requires two types of test specimens to characterize material properties:
- Long rectangular specimens are used to evaluate material flammability and burning time.
- Square specimens are used to assess material penetration resistance.
The test adopts the 500W flame method, complying with standards including:
- GB/T 5169.17 (5VA/5VB)
- IEC 60695-11-20
- UL94 (5VA/5VB)
- ASTM D 5048
- ISO 10351
Additional Notes (from full document context)
(Note: The upper section of the image includes parameters for a different test system, not directly belonging to the DX-8522, but listed here for reference)
- Heat flux meter range: (0–15) kW/m²; Accuracy: ±0.2 kW/m²; Error: ≤ ±3%
- Heat radiation temperature range: 400–600 °C; Accuracy: ±0.5 °C; Error: ±5 °C
- Combustion gas: Propane (customer-provided); Flow rate: (0.026 ± 0.002) L/s
- Ignition system: High-voltage electronic ignition
- Exhaust system: Strong exhaust fan (flow: 39–85 m³/min)
- Combustion chamber dimensions: L1420 × W1200 × H2300 mm
- Materials: 304 stainless steel (burner, cabinet) or A3 steel with anti-corrosion plating
