Thông tin chi tiết sản phẩm:
|
| Tên máy: | Máy kiểm tra độ bền kéo | Máy móc: | với Máy tính, Bóc vật cố định |
|---|---|---|---|
| Tiêu chuẩn: | ISO37, ASTM624B | Bảo hành: | một năm |
| Phạm vi kéo: | 5 kg hoặc 150 kg (bao gồm 2 cảm biến) | Nguồn điện: | AC 220V, 50Hz |
| Kích thước (L x W x H): | 500 mm x 600 mm x 800 mm | Cân nặng: | 150kg |
| Làm nổi bật: | ASTM D903 tensile testing machine,servo tensile testing machine with peel fixture,peel off fixture tensile tester |
||

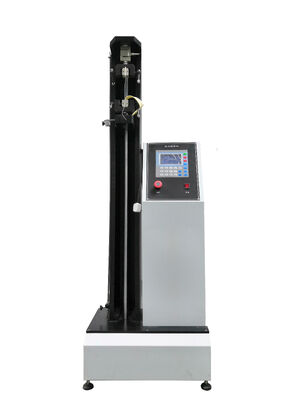

ASTM D903 Servo Tensile Testing Machine with Peel off fixture
1, Scope of application:
Widely applicable, suitable for industries such as rubber, plastic, wire and cable, footwear, leather, textile, papermaking, and metal copper aluminum wire, aluminum foil, etc; Can test the tensile strength, elongation, tear force, adhesion force, peel force, shear force, adhesion force, connection force, etc. of the sample. Using high-precision sensors to achieve high precision in sensing force; The elongation and tensile strength meet the standard ISO37; Tear resistance should refer to the standard ASTM624B.
2, Compliant with standards:
Meets the testing standards of ISO37, ASTM624B, UL1581, IEC 811, and UL817.
3. Technical Parameters / Specifications:
| Category | Parameter | Details / Value |
|---|---|---|
| General | Tensile Range | 5 kg or 150 kg (2 sensors included) |
| Maximum Travel | 400 mm | |
| Load Accuracy | ±0.5% | |
| Load Resolution | 0.01 g | |
| Unit Conversion | kg/lb or g/N | |
| Peak Lock Function | Yes | |
| Motor & Drive | Primary Motor | Panasonic Servo Motor (400W) |
| Speed Regulation Motor | AC Motor with Variable Frequency Drive | |
| Speed Control | Infinite Regulation Range | 0.1 ~ 500 mm/min |
| Preset Gear Speeds | 50, 100, 250, 350, 500 mm/min (freely switchable) | |
| Speed Accuracy | 50±0.5 mm/min, 500±1.0 mm/min | |
| Measurement | Induction Method | High-precision Sensor |
| Application Tool | Pressure Plate Tool | Diameter: 5 cm (Suitable for compression ratio testing) |
| Experiment Speed (for tool) | 0.5 ~ 500 mm/min | |
| Power & Dimensions | Power Supply | AC 220V, 50Hz |
| Body Size (L x W x H) | 500 mm x 600 mm x 800 mm |
Welcome to visit our factory for sightseeing!
| Supplier Company Name | Dongguan Daxian Instrument Equipment CO.,Limited |
| Company Address | Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China |
| Contact Person | Sophia Su |
| Mobile Number | 86-13266221899 |
| 15024082385 |
