Thông tin chi tiết sản phẩm:
|
| Tên máy: | Máy kiểm tra SBI | Loại thiết bị: | Thiết bị thử nghiệm cháy |
|---|---|---|---|
| Tiêu chuẩn: | EN13823 | Bảo hành: | 12 tháng |
| Thời gian giao hàng: | 20 ngày làm việc | ||
| Làm nổi bật: | EN 13823 SBI fire testing machine,single burning item lab equipment,fire testing equipment with warranty |
||
Why is the SBI so important?
Most construction products sold in Europe will shortly need to be tested and classified using a new test method called the Single Burning Item (the SBI) EN 13823. The construction products directive of the European commission will require that all European Member states eventually use this, instead of the traditional regulatory methods used in each country, to classify most building products.
The Commission recently defined the criteria for assessing building products into classes A-F. These are given in the table below. Though other test methods are required the SBI is needed to classify all non flooring products into the classes A2, B, C and D which are the major classes inhabited by most products other than those that are principally inorganic classified as non-combustible.
What is the SBI test?
The Single Burning Item (SBI), is a method of test for determining the reaction to fire behaviour of building products (excluding floorings) when exposed to the thermal attack by a single burning item (a sand-box burner supplied with propane). The specimen is mounted on a trolley that is positioned in a frame beneath an exhaust system. The reaction of the specimen to the burner is monitored instrumentally and visually. Heat and smoke release rates are measured instrumentally and physical characteristics are assessed by observation.
Software:
Instrument Supplied with Software at no extra charge. Software updates provided free of charge.
Trolley, which mounts the specimen, with primary sand-box burner on the corner.

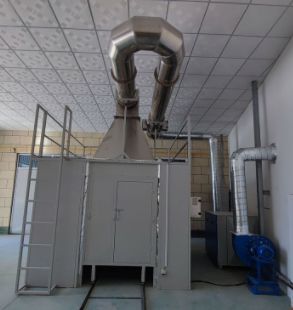

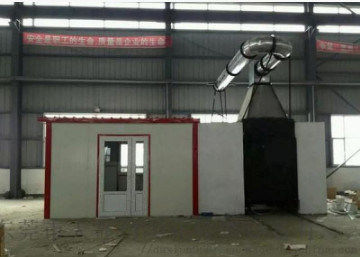

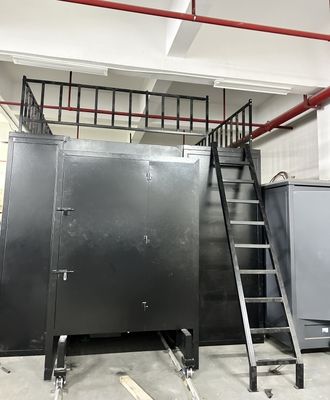

Test room, with trolley position frame, secondary sand-box burner on the support frame. A proper observation window should be on side of the wall. Hood with baffles and collector fitted to the room above the frame.
Stainless steel ducting, with instrumented section, which has combustion gas sampling probe, bi-directional probe, thermocouples, and light attenuation system for smoke measurement.
Gas analysis rack, with gas sampling system, gas analysis sensor, and data acquisition system.
Combustion gas sampling system, consisting of 3-stages filters (accuracy up to 0.5 microns), refrigerated cold trap, diaphragm pump, moisture trap.
Propane mass flow controller for sand-box burner, accuracy up to ±1.5% F.S.
Oxygen analyzer, paramagnetic type with the range of 0 to 25%. SERVOMEX® or ABB® gas analyzer is optional.
Carbon dioxide analyzer, NDIR type with the range of 0-1% & 0-10%. SERVOMEX® or ABB® gas analyzer is optional.
Data acquisition system, maximum record the data 50 times per second.
Operation software, with the functions of the standard test program, sensor calibration, auto system calibration, status monitoring, and report management.
Advanced Options
Dual test room/trolley with one control and analysis system.
Connect to Cone Calorimeter for analysis rack sharing.
