Thông tin chi tiết sản phẩm:
|
| Hỗ trợ tùy chỉnh: | OEM, ODM, OBM, tái cấu trúc phần mềm | Bảo hành: | 1 năm |
|---|---|---|---|
| Tên sản phẩm: | máy thử thả | Ứng dụng: | LECRICTRICS, hộ gia đình, điện thoại di động |
| Chức năng: | Bài kiểm tra thả miễn phí | Cân nặng: | 70kg |
| Nguồn điện: | 220VAC±10% | Tiêu chuẩn: | GB/T243.8 |
| Làm nổi bật: | drop tester machine for lab,lab drop testing equipment,drop impact tester with warranty |
||
Main technical parameters;
1. Drop height range: 300-1500mm
2. Height display mode: digital
3. Drop height error: ±10
4. Drop floor plate medium: steel plate
5. The maximum weight of the specimen: 10KG
6. Bearing panel size: 220x200x12mm
7. Impact panel size: 550x650x20mm
8. Testing machine dimensions (approx.): 650 x 560 x 2260
9. Control box dimensions: 350 x 350x1000mm
10. Height adjustment: motor driven
11. Drop mode: (electric): surface, edge, angle
12. Net weight (approx.): 70KG
13. Power supply: 220VAC±10%
14. Standard: GB/T243.8 Power supply: 220V, 5A

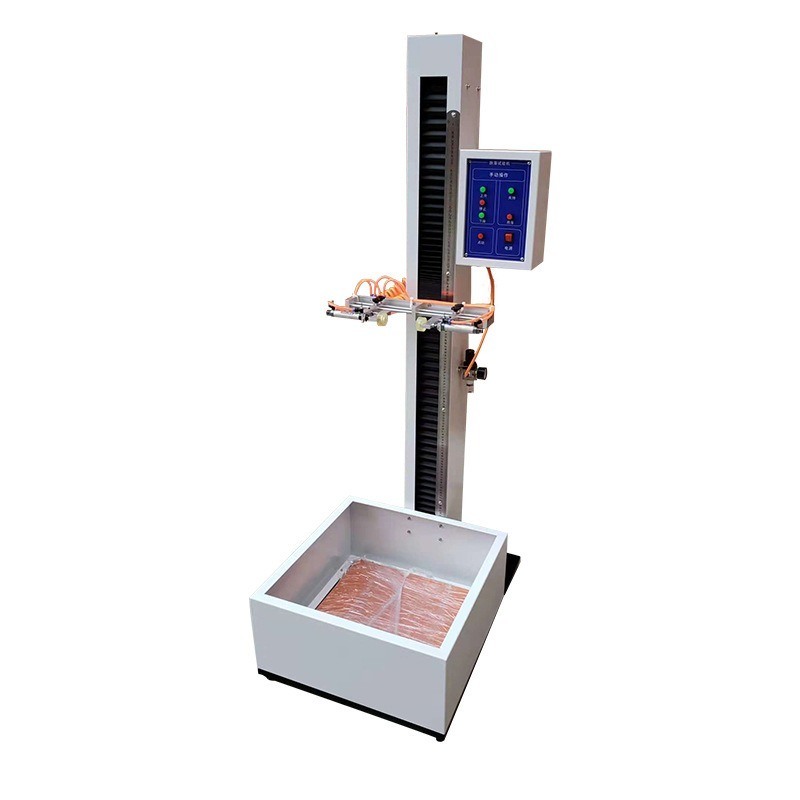

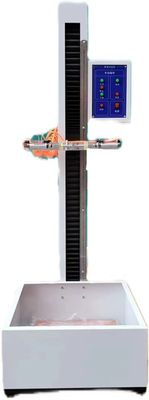

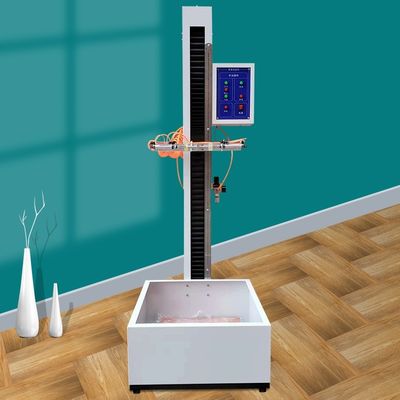

This machine is suitable for free drop test of electronics, electrical appliances, household appliances, mobile phones (mobile phones, tablets), intercoms and other small consumer electronic products and components.
The machine adopts electric structure, the tested part is placed in the special fixture (adjustable stroke) clamp, press the falling key, the fixture is loosened, the specimen will be free fall test. Drop height can be adjusted up and down, and with meter height tracking, you can know the drop height of the specimen.
