Multi Functional Comprehensive Testing Machine For Insulators

Multi Functional Comprehensive Testing Machine For Insulators
Multi Functional Comprehensive Testing Machine For Insulators Multi Functional Comprehensive Testing Machine For Insulators Multi Functional Comprehensive Testing Machine For Insulators Multi Functional Comprehensive Testing Machine For Insulators Multi Functional Comprehensive Testing Machine For Insulators Multi Functional Comprehensive Testing Machine For Insulators

Hình ảnh lớn :  Multi Functional Comprehensive Testing Machine For Insulators

Thông tin chi tiết sản phẩm:
Hàng hiệu: DAXIAN
Thanh toán:
Giá bán: CN¥21,428.70/boxes

Multi Functional Comprehensive Testing Machine For Insulators

Sự miêu tả
Bảo hành: 1 năm Hỗ trợ tùy chỉnh: OEM, ODM, OBM, Tái cấu trúc phần mềm
Địa điểm xuất xứ: Quảng Đông, Trung Quốc brand name: DAXIAN
Sức mạnh: 2KW Độ chính xác: ≤ 5%
Điện áp: 380v Loại: Máy thử nghiệm
Lớp bảo vệ: IP65, IP65 Nhiệt độ ẩm: Nhiệt độ tương đối định mức: RH = 95% ± 3%, ở mức 50 ℃
Trọng lượng: 2 tấn Kích thước ((L*W*H): L310*W320*H320cm
Ứng dụng: Nó chủ yếu được sử dụng cho thử nghiệm căng thẳng của các chất cách điện. nhiệt khô: Làm nóng phòng thử đến 50 ℃ ± 2
Làm nổi bật:

Insulators Comprehensive Testing Machine

,

Multi Functional Comprehensive Testing Machine

Company Profile
Multi Functional Comprehensive Testing Machine For Insulators 0
Multi Functional Comprehensive Testing Machine For Insulators 1
Multi Functional Comprehensive Testing Machine For Insulators 2
DAXIAN INTERNATIONAL EQUIPMENT CO., LTD is Located in Dongguan City, Guangdong Province, China, we are a high tech enterpris which is specialized in development and manufacturing, The most professional OEM manufacturer in the country,we mainly produce Fire Testing Equipment, Construction Materials Testing Equipment, Plastic Testing Equipment, Wire Testing Equipment, Environmental Test Chamber, Tensile Testing Machine, and others DAXIAN's testing equipment is widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electronics, LEDs, photoelectricity, mobile, plastic rubber, telecommunications, chemical industry, aerospace, building materials and products, wire and cable, textile and fabric, etc
. All DAXIAN testing equipment is designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and so on

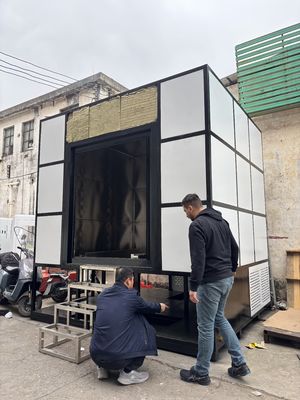

Customer Photos
Multi Functional Comprehensive Testing Machine For Insulators 3
Product Installation Guide
Specification
Item
Value
Warranty
2 Year
Customized support
OEM, ODM, OBM, Software reengineering
Place of Origin
China
Guangdong
Brand Name
DAXIAN
Voltage
380V
Power
Electronic
External dimensions
L310*W320*H360CM
2TonWeight
260G
Power
2KW
Standard
IEC62730:2024, GBT22079, IEC62217-2012
Protection Class
ip65
Product name:
Technical Specifications for the 5000 - hour Multiple Stress Test Setup in accordance with IEC 62730:2024.


Test Conditions:
The cycle of stresses applied to the insulators and repeated for a period of 5 000 h is shown in Figure 3. The cycle is designed
so that the test specimens are also subjected to the effects of temperature variation and condensation .


Artificial Rain:
The artificial rain shall be provided by nozzles mounted above the test specimens and outside their perimeter (see Figure 4 ). The
average precipitation rate shall be in accordance with IEC 60060-1 . Water of a minimum resistivity of 85 nm shall be used. Each
of the test specimens is sprayed individually.


Salt fog calibration:
The calibration will be carried out before the start of the test.
At least two clean collecting receptacles with a collecting area of 8 000 mm2 ± 2 000 mm2 and a maximum height of 100 mm each are placed as close as practical to the position of the ends of the test object. The receptacles are positioned in such a way that they are not shielded by the test specimens and to avoid dripping from the construction elements of the chamber or another source.
They should collect between 1,5 ml and 2,0 ml of precipitation per hour (corrected to 8000 mm2 collecting area) averaged over a minimum period of 16 h.
NOTE The flow rate necessary to obtain such precipita tion (typically of the order of 0,3 l/m3h based on a chamber not larger than(15 m3) should be noted. (The water flow rate is defined in l itres per hou r and per cubic meler of the test chambe r volume. )
Subsequently du ri ng the test, the flow rate should be checked at least every 100 h and should remain within ± 25 % of the initial value.
it is not permitted to re-circulate the water.


General conditions:
1- Training will be provided on the maintenance and use of the device
2- After the installation is completed, the device will operate without any problems for 1 month (4 weeks) for acceptance.
3- Electrical diagram and water pipe connection system diagrams will be provided
4- Maintenance manual will be provided
5- User manual will be provided
6- Parts in contact with salt fog and rain will be stainless
7- Electrical components will be suitable for 380V infrastructure
8- Warranty conditions will be specified
9- Spare parts will be provided for 10 years
10- Consumables list will be provided

Core advantages of insulators:
1.Excellent insulation performance
Insulators can effectively isolate high voltage by increasing the creepage distance, prevent current leakage and arc flashover, and ensure the safe operation of the power system. For example, composite insulators are made of materials such as silicone rubber, which have excellent resistance to pollution flashover and can maintain stability in heavily polluted environments. 2.High mechanical strength and durability Modern insulators, such as the fourth generation epoxy resin composite insulators, have higher mechanical reliability and can withstand extreme mechanical loads (such as wind vibration, icing) and temperature changes, reducing failures caused by material degradation.

Future Development Trends of Insulators: 1.Material Innovation and Performance Upgrade The fourth generation hard composite insulator: using epoxy resin based materials, it solves the problems of interface sealing failure and self explosion of the previous three generations of products, and has high mechanical strength and pollution flashover resistance. It has entered the commercial pre production stage 710. Nanocomposite materials: By adding nanoparticles to enhance the aging resistance and UV resistance of materials, they can adapt to new demands such as high-frequency harmonics in smart grids. 2.Expansion of application areas High voltage and ultra-high voltage transmission: With the upgrading of the global power grid, the demand for insulators with voltage levels of 750kV and above has surged, especially in transmission projects in extreme areas such as deserts and high cold regions. New energy and rail transit: The demand for lightweight and high reliability insulators in wind power, photovoltaic power plants, and high-speed rail contact networks is driving market growth.
Packing & Delivery
Multi Functional Comprehensive Testing Machine For Insulators 4
Multi Functional Comprehensive Testing Machine For Insulators 5
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Selection of Packaging Materials: Selection of Packaging Materials 1. Use sturdy and durable packaging boxes to prevent equipment
damage caused by collision or compression during transportation. 2. The interior is filled with shockproof materials, such as
foam, air cushion or pearl cotton, to ensure that the equipment will not shake in the packaging box. 3. For fragile or sensitive
components (such as electrodes, display screens, etc.), package and secure them separately to avoid damage during transportation.
Mode of Transport: 1. Prioritize choosing professional logistics and transportation companies to ensure safety and reliability
during transportation. 2. For long-distance transportation, land or sea transportation should be used to avoid the potential
impact of air pressure changes on equipment during air transportation.
