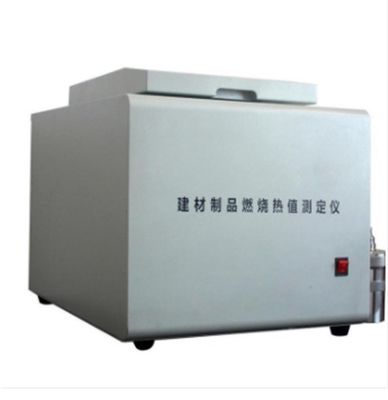

ISO 1716-2002 Building Material Combustion Calorific Value Lab Testing Instrument Flammability Testing Machine

Chứng nhận
Trung Quốc DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD Chứng chỉ
Trung Quốc DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD Chứng chỉ
Khách hàng đánh giá
Trước khi tôi mua máy, tôi thấy đối tác của chúng tôi sử dụng máy của bạn, sau khi nhận được, tất cả đều tốt. cảm ơn, hy vọng làm cho thỏa thuận thời gian tới quá.

—— Max Will

Lúc đầu tôi lo lắng về việc công ty của bạn có thể giao hàng kịp thời không, hóa ra công ty của bạn tốt, không chậm trễ

—— Peter Huang

Hợp tác tốt đẹp! Chúng tôi đánh giá cao sự hỗ trợ của công ty bạn đối với các dự án của chúng tôi. Dịch vụ rất tốt.

—— Mr Hussain

Báo giá chuyên nghiệp, công nghệ chuyên nghiệp, để chúng tôi nhận được hàng hóa kịp thời, doanh nghiệp đáng tin cậy. Hy vọng chúng tôi vẫn có thể hợp tác trong thời gian tới!

—— Ông Paul Garry

Tôi trò chuyện trực tuyến bây giờ

ISO 1716-2002 Building Material Combustion Calorific Value Lab Testing Instrument Flammability Testing Machine

ISO 1716-2002 Building Material Combustion Calorific Value Lab Testing Instrument Flammability Testing Machine
ISO 1716-2002 Building Material Combustion Calorific Value Lab Testing Instrument Flammability Testing Machine

Hình ảnh lớn :  ISO 1716-2002 Building Material Combustion Calorific Value Lab Testing Instrument Flammability Testing Machine

Thông tin chi tiết sản phẩm:
Hàng hiệu: DAXIAN
Thanh toán:
Giá bán: CN¥1,428.58/boxes >=1 boxes

ISO 1716-2002 Building Material Combustion Calorific Value Lab Testing Instrument Flammability Testing Machine

Sự miêu tả
Bảo hành: 1 năm Hỗ trợ tùy chỉnh: OEM, ODM, Kỹ thuật lại phần mềm
Địa điểm xuất xứ: Quảng Đông, Trung Quốc brand name: Daxian
Mã số: DX8424 Tên sản phẩm: ISO1716 Công cụ kiểm tra phòng thí nghiệm giá trị nhiệt lượng
Tiêu chuẩn: ISO1716 Mô hình: DX8424
Từ khóa: Máy kiểm tra giá trị nhiệt lượng Giá trị năng lượng: 30MJ/kg
Trọng lượng: 100kg Kiểm tra điện áp: 220v
Làm nổi bật:

ISO 1716 Lab Testing Instrument

,

Combustion Calorific Value Lab Instrument

,

Building Material Lab Testing Instrument

Building Material Product Combustion Calorific Value Measuring Instrument , Flammability Testing Machine



Scope of application:

Building material products combustion calorific value tester, also known as calorimeter, in the constant heat capacity of the oxygen bomb calorimeter, the determination of the combustion heat value of the building materials test. Including the total calorific value of combustion and net calorific value.



Standards:

Comply with  ISO 1716-2002 "Testing of combustion heat value of building products on fire reaction test".



Technical parameters:

1, the total calorific value of combustion: 30000000/Kg (30MJ/kg)

2. The dynamic value of the recurrence error of the combustion calorific value ≤0.1%

3, temperature range: 0 ~ 50 °C

4, temperature resolution: 0.0001 °C using PT100 sensor

5, oxygen bomb volume: 300ml. The mass is 32kg

6, the inner cylinder volume: 2200m

7, Oxygen bomb oxygenation pressure 0-35Mpa no leakage

8, oxygen bomb pressure resistance: ≥ 21Mpa water pressure

9, stirring power: 3W

10, stirring speed within the barrel: 375r/min

11, power supply: AC185-245V

12, two stainless steel (stainless steel)

13. Oxygen bombs

14, ignition coil 1 volume

15. Inclusion method and cigarette method

16. A set of cigarette preparation equipment

17. The system automatically records the temperature rise data and time; the system can automatically perform temperature correction and total calorific value calculation based on the input heat capacity, sample mass and additional heat, and gives the result; the computer of the experimental device has an icon display Function, display curve Excel data table, print function, data input, command control function; In order to complete the system, the computer system can add fault alarm, warning alarm and other functions

18. Ignition circuit: voltage 12V, adjustable current 100mA, ignition wire 0.1mm diameter wire 19, thermal insulation system and isothermal heating system

20, total calorific value and net calorific value are directly read without calculation

21, a set of computer printer.
